transplanter vegetable garlic planting machine taro transplanting machine tree transplanting machine onion seedling transplante
|
Vegetable transplanter model number |
2ZBZ-2A |
|
Structure type |
Hand self-propelled |
|
Dimension(mm)(Length * width * height ) |
2700×1400×1380 |
|
Weight(kg) |
460 |
|
Mating power(kW) |
4.05 |
|
Engine speed(r/min) |
2000 |
|
Vegetable transplanter clutch type |
Belt tension |
|
Driving mode |
Belt drive |
|
Tread(mm) |
800~1100/850~1200 |
|
Wheelbase(mm) |
1050~1150 |
|
Tyre model(front/back) |
4.00~10/4.00~7 |
|
Driving wheel type |
Herringbone |
|
Vegetable transplanter model |
Duckbill ring style |
|
Working Lines |
2 |
|
Vegetable transplanter working Speed(km/h) |
1~1.5 |
|
Vegetable transplanter productivity(hm*2/h) |
0.1~0.13 |
|
Walking speed(km/h) |
1~2.6 |
|
Adjustable range of row space(mm) |
300,400,500 |
|
Adjustable range of depth(mm) |
60~120 |
|
Seedling types and height range(mm) |
Hot pepper,tobacco,beet and so on. |
|
Numbers of operators(including tractor driver) |
3 |
Operating principle and scope of application

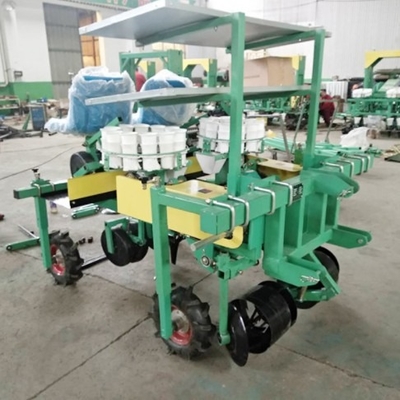

2ZBZ-2A self-propelled two lines vegetable transplanter possesses many practical functions, including traveling automatically, transplanting, and transverse throw seedling, etc.
The vegetable transplanter is more suitable for working in the soil which the absolute water content is not enough 20%.If exceeding the scope of application, the working performance will be likely to decline and the service life of the machine will be shortened. Especially, the machine is suitable for transplanting of tobacco, pepper, eggplant, tomato, sugar beet, etc nutrition bowl nursery crops, which planting in mountainous areas, hills, Plastic greenhouses, etc.
2ZBZ-2A:2Z indicates machinery of transplanting, B indicates transplanting ware of duckbill hanging cup, Z indicates hanging, 2 indicates rows of transplanting, and A indicates the first improvement.
Vegetable transplanter model: 2ZBZ-2A
Save effort---Traveling, transplanting, watering automatically, and allowing riding.
Practical---Operating simply, efficiently.
Flexible---The row spacing is adjusted, and it can be customized.
Production lines
Detection
Packing and shipping
1)Port of loading:Qingdao/Shanghai/Tianjin,China.
2)Delivery period:30 days after drawing confirmed by buyer.
3)Package:the accessories packed in plywood cases and the main body in nude.
4)Warranty period:3 years.
5)Valid time:90 days.
Our services
1)Excellent production team.
2)Best quality products.
3)Professional after-sales.
4)Prompt reply for your inquiry and feedback.
