Home /Products/Bed Planter Machine/No-Till Application Debont 2-8 Rows w/Heavy Opener Ripple Disc Coulter Seeding Meter No Till Seed Planter & Fertilizer

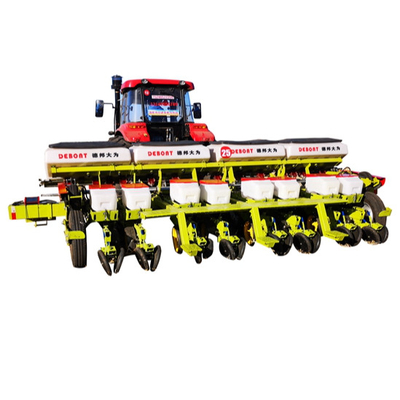

No-Till Application Debont 2-8 Rows w/Heavy Opener Ripple Disc Coulter Seeding Meter No Till Seed Planter & Fertilizer

1 unit
MOQ
$15,000.00(1 - 4 units) $12,000.00(5 - 9 units) $10,000.00(>=10 units)
Price
No-Till Application Debont 2-8 Rows w/Heavy Opener Ripple Disc Coulter Seeding Meter No Till Seed Planter & Fertilizer
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Farms
Number Of Rows: 2, 3, 4, 5, 6, 8
Showroom Location: Zimbabwe
Condition: New
Type: Debont 1805
Application: No-till Application
Use: Seeding
Weight: 2900 KG
Dimension(L*W*H): 400*600*174 (cm)
Warranty: 1 Year
Key Selling Points: Excellent Seed Placement
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Opener, Seed Meter, Press Wheel, Seed Tank
Seed Feed: Clip/Vacuum Suction
Working Efficiency(Ha/h): 2.4-4.4
Tractor PTO Requirement (Hp): 90-120
Seeding Depth (mm): 30-80, 10 Levels
Fertilizer Depth (mm): 60-130
Seed Tank Capacity(L): 35*2-35*8
Fertilizer Tank Capacity(L): 270*1-270*4
Openers: 2*360mm Diameter
Working Speed(Km/h): 6-8
Min/Max Spacing (cm): 42-70
Basic Infomation
Payment & Shipping Terms
Packaging Details: container
Product Description
Different from other manufacturers of seeder, Debont do not produce a lot of types of seeder. We possess unique advantage in no till seeders.
In recent years, as the strong support of Chinese government for the protection of soil and environment, the conservation tillage has been developed rapidly in the northeast of China, and Debont has become the most reliable brand among Chinese farmers, based on our deep study of the structure of several world leading no till brands, like Kuhn, Maschio, etc., and the development of our patented technology. Nowadays, Debont has been exported to more than 10 countries and been appraised by more and more foreign users. For more details, please be so kind to have a view of the presentation below:
Products Description
From 2 rows to 8 rows, which are designed for no-till applications, but also can quickly adjust to conventional tillage conditions. Only the 1205 (2-row) is the model of tractor-trailed, and the other models can be used as tractor-mounted
(3 points) and tractor-trailed, which can not only be used as no-till seeder on field with heavy residue(tractor-trailed), but also be used on cultivated field (tractor mounted). One machine for two occasions, the innovative feature of Debont no till seeder.
Operate in HIGH-residue condition + Control HIGH Precision of depth=HIGH efficiency and performance
Wonderful Performance of Debont in Lishu
The weight and openers are two key factors to make the seeder to realize the wonderful performance in high-residue fields. Debont seeder is the only seeder that can operate in the test field of Lishu District of Jilin Province, northeast of China. To develop the no till application and protect soil, the Agricultural University of China establishes the test field in Lishu. In the exceptional high-residue condition, only Debont seeder can operate on the field. The wonderful germination was praised by the President of China, Xi Jinping when he visited the field in July of 2019.
Structure of Debont No Till Seeder
The bottom of Debont seeder is composed with fertilizer opener, rotary coulter, ribbed disc, seed opener, profiling wheel, and press wheel. ensuring the precise depth control and even germination on uneven terrain. The seeder can open slit in soil, fertilize on base, press seed bed, drop in seed, close seed trench, and manage residue once a time. The working speed can reach 6-8 km/h, and the working efficiency reach 4 hectares per hour (8 rows seeder).
Equipped with double disc or single disc fertilizer opener with the size larger than othan brands, which has good passing capability and lie the fertilizer deeply.
Relying on gravity and spring, the ripple discs and rotary coulters loosen soil,open ditch and cut stubble.
The V-shaped hollow rubber wheel type soil covering roller is adopted to the press wheels to realize the extrusion of soil covering and realize a wonderful moisture conservation. The angle and pressure can be adjusted easily by the two handles.
The main beam, which adopts180mm thick steel, and the auxiliary beam, which adopts 120mm thick steel, are welded and fixed with side plates. And the reinforced traction beam is fixed on the main beam and the auxiliary beam.
The muti-functional intelligent monitor is used to monitor and display the monitoring data in real time, such as operation speed, sowing conditions, number of seeds, operation area, etc.
The fine-tuning device of fertilization amount is adopted to accurately adjust the fertilizer amount, realizing scientific fertilization.
The synchronous profiling structure is adopted to the seeding process, and the profiling wheel is mounted on both sides of the seeding ditcher to ensure the consistency of seeding depth.
Double side ground wheel synchronous transmission structure is adopted, which makes the transmission more reliable and the placement of seeds more precise.
The industry-leading seeding meter of clip finger or vacuum suction with brand Precision is equipped on Debont seeder. If you have a few types of seed to sow, the type of clip finger will be a better choice for a less cost and easier maintenance, and the rate of missed seeding can be lower than 3%. If you have several types of seed to sow, the type of vacuum suction will be better, and the rate of missed seeding can be lower than 1%. The following seeds are especially suitable to be sowed with Debont no till seeder:
Debont owns a advanced assembly line of seeder in Jiamusi, located in the northeast of China, where has the largest no till field of China.
Worldwide Applications
The Debont seeder was appraied by the President of Zambia.
The Debont seeder was appraied by the President of Zambia.
Product Paramenters
1205
1305
1405
1505
1605
1805
Seed Feed
Finger Clip/
Vacuum Suction
Finger Clip/
Vacuum Suction
Finger Clip/
Vacuum Suction
Finger Clip/
Vacuum Suction
Finger Clip/
Vacuum Suction
Finger Clip
Rows
2
3
4
5
6
8
Width/Height
(mm)
3100*1880*
1570
4000*2560*
1740
4000*3500*
1740
4000*4580*
1740
4000*5100*
1740
4000*6000*1740
Wight(kg）
1180
1870
2090
2830
3050
2900
Working Efficiency

0.6-1.1(Ha/h)
0.9-1.7(Ha/h)
1.3-2.4(Ha/h)
1.5-2.7(Ha/h)
1.8-3.2(Ha/h)
2.4-4.4(Ha/h)
Tractor PTO Requirement(Hp)
35-50
trailed
40-70
trailed or mounted
55-80
trailed or mounted
70-90
trailed or mounted
80-90
trailed or mounted
90-120
trailed or mounted
Seed Tank Capacity(L)
35*2
35*3
35*4
35*5
35*6
35*8
Fertilizer Capacity(L)
270+
23*2
270+
23*3
270*2
+23*4
270*3
+23*5
270*3
+23*6
270*4
+23*8
Openers
2*360mm diameters
Ribbed Discs
2*390 mm diameters
Profiling Wheel
2*400 mm diameters
V Shape Press Wheel
2*230mm diameters
Min/Max Row Spacing （cm)
42-70
Min Plant Spacing (cm)
8
Workding Speed（Km/h)
6-8
Seeding Depth (mm)
30-80, 10 levels
Fertilizer Depth (mm)
60-130
Company Profile
Invested by Jinan Jinpu New Energy, Agrecommerce Ltd. is the co-productive and e-commerce marketing partner of Debont Crop., the leading agricultural machinery manufacturer in China. We are aimed at equipping your farm with quality and cost-effectiveness and providing one-stop service for the cross-border trade of agricultural equipment and products. Agrecommerce owns professional R&D, manufacturing, marketing, and technical service teams and three production bases, specialized in irrigation equipment, seeders, and drying & storage machinery respectively. Based on our own website and online store on Alibaba, we are promoting agricultural equipment with brand of Debont. Agrecommerce and Debont are committed to delivering high-quality and innovative agricultural equipment and comprehensive solutions to help the growth of our customers worldwide, and to realize the maximum return of investment.
Certifications
FAQ
1.Debont no-till seeder can be used in conventional condition? Yes. Except the 1205 model, all the other models can be mounted on tractor and be used as tradicional precision seeder. The only issue that has to be paid attention is the PTO requirement, which has been shown on our parameter table.
2.Which type of seed can be sowed by Debont no till seeder? Corn, soybean, cotton, and other seeds that we have shown on this page. If you have question about which type of seed can be sowed by Debont no till seeder, please do not hesitate to contact with us.
3. Can I only purchase one seeder? Yes, you can. However, we suggest that you purchase several seeders to fill one container at least, considering the transport cost.
