Type | 2BMQ-4 |

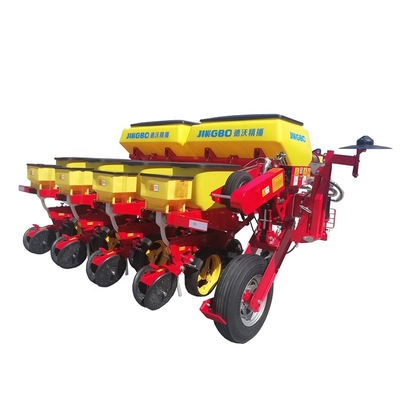

Name | Tractor type no-till precision seeder |
Scope of application | No-tillage planter ＆ Conventional planter |
Structural form | Mechanical type,Trail-behind |
Matching power(Kw/Hp) | 40.4～51.5/55～70 |
Working Rows(Rows) | 4 |
Adaptive Row Spacing(mm) | 400～700 |
Working Width(mm) | 1600～2800 |
Overall Dimension(L*W*H)(mm) | 3000×3500×1600 |
Weight（Kg） | 2000 |
Max.Weight（kg） | 2960 |
Drive Tranceport Type | Ground Wheel Drive,Pinch Wheel, Transmission Chain |
Feeding Device | Finger clip type |
Feeding Device Number(PCS) | 6 |
Feeding Device Drive Mode | Transmission Chain |
Spacing Range（cm） | 7～41 |
Index of sowing effect（%） | Single grain rate≥96, Non-broken seed, Eligible rate of plant spacing |
Seeding Opener Type | Double Disc |
Seeding Opener Number(PCS) | 4 |
Fertilizer Feeder Type | External Type |
Fertilizer Feeder Drive | Transmission Chain |
Fertilizer Opener | Single Notch Disk |
Fertilizer Opener Number(PCS) | 4 |
Adjustment Range of fertilizer discharge（kg/hm2） | 200-1680 |
Regulation of fertilizer discharge | Change the transmission ratio+ Change the External Sheave Working Length |
Grill wheel type | Two-way involute gear type |
Loosen,Stomper type | Wavy disk+ Grass wheel |
Paraffin wheel type | Wide-width hollow rubber wheel |
Land wheel form | Plain inflatable rubber wheel |
Ground wheel diameter（mm） | 700 |
Sowing depth adjustment range（mm） | 5～75 |
Overburden ballast type | V-shaped opposed narrow rubber wheels |
Suppression intensity adjustment range（g/m2） | 4×60 (The seed is about 180kg) |
Base fertilizer tank volume | 4×180 (Fertilizer about 720kg) |
Fatty tank volume（L） | 4×15 (Fertilizer about 60kg) |
Monitor function | Block and shortage of fertilizer alarm,missing out alarm,sowing quantity statistics |
Seeding monitor | DE-4 Finger clip 4 rows |
Optimal operating speed range（km/h） | 6～8 |
Operational efficiency（hm2/h） | 1.2～2.0 |
